1W - 20W
Showing 1–16 of 19 results
Compact Pulsed Lasers
Michael Iluz
Key Features:
- Output energies up to 340mJ
- Stable telescopic resonator
- Electronically verified safety shutter
- 2nd, 3rd, 4th and 5th harmonics
- High energy TEM00 option available
- Choice of stable, telescopic or super-Gaussian resonators
HIGH ENERGY COMPACT PULSED LASERS
Michael Iluz
Key Features:
- Plug and play interchangeable harmonic modules to 213nm
- Twin-rod architecture for high beam homogeneity
- Intelligent motorised auto-tuning of harmonics
- Auto-stabilisation for ‘set and forget’ operation
- Integrated motorised attenuator
- Easy connections and fast start up
- High energy and high repetition rate models
- Super Gaussian, stable and stable-telescopic resonator options
- LUCi touchscreen or PC control interface
- Rugged industrial design
HIGH ENERGY PULSED LASERS
Michael Iluz
Key Features:
- Rugged Invar stabilised construction
- Up to 3.5J at 1064nm
- Repetition rates up to 200Hz
- Telescopic or super-Gaussian resonators
- All harmonics to 213nm available
- Full energy in <5 minutes at all wavelengths
- Full RS232 software control
- Modular design
- Birefringence compensation
- Injection seeded option
- Line narrowing etalon option
- IGBT switching for long lamp life
- Fully integrated power supply and water cooler

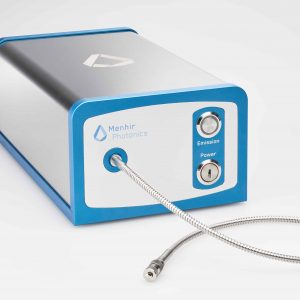

MENHIR-1550 SERIES
Michael Iluz
Key Features:
- Ultra-low noise
- Transform-limited pulses
- Compact industrial design
- Harsh environment resistant
- User friendly
- Turnkey system
- 24/7 operation
- All-in-one system

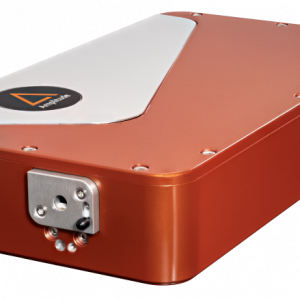

Mikan – Air-cooled high power ultrafast oscillator
Bernard Azout
Key Features:
- Air-cooled system
- Ultra compact
- Ideal for biophotonics and imaging applications
- Optional green output

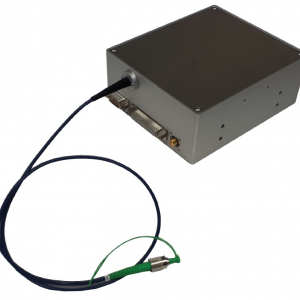

Nps – Narrowband ps lasers
Johanna Taieb
Key Features:
- 1064.3 +- 0.1 nm
- 7ps
- spectral width <0.3nm
- 40MHz
- air-cooled and liquid-cooled version
Pulsed laser diode illuminator: Illuminator for high pulse repetition rate
Bernard Azout
Key Features:
- Energy and pulse width from 1mJ/100ns to 2.5mJ/200ns
- Up to 10 kHz pulse repetition rate
- Up to 20 W average power
- Single wavelength emission among 808, 915, 940 or 980 nm (other wavelengths in option)
- Fast axis collimation of diode bars included
- High reliability (> 100 x 109 shots)
- Robust design integrated into a closed protective housing
Pulsed laser diode illuminator: Illuminator for short pulses – packaged version
Bernard Azout
Key Features:
- Energy and pulse width from 1 mJ/30ns to 4mJ/100ns
- Maximal pulse repetition rate between 1 and 6 kHz
- Up to 6 W average power
- Single wavelength emission among 808, 915, 940 or 980 nm (other wavelengths in option)
- Fast axis collimation of diode bars included
- High reliability (> 100 x 109 shots)
- Robust design integrated into a closed protective housing
Pulsed laser diode illuminator: Illuminator for short pulses – ultra-compact OEM version
Bernard Azout
Key Features:
- Energy and pulse width from 1 mJ/30ns to 4mJ/100ns
- Maximal pulse repetition rate between 1 and 6 kHz
- Up to 6 W average power
- Single wavelength emission among 808, 915, 940 or 980 nm (other wavelengths in option)
- Various beam geometry available
- High reliability (> 100 x 109 shots)
- Easy to integrate, robust design

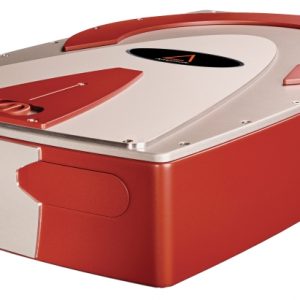

Satsuma – Versatile, full-featured and compact femtosecond laser
Bernard Azout
Key Features:
- Air-cooled up to 20 W
- FemtoBurst™
- SuperSync Control
- Optional green, UV and DUV outputs
- Industrial design for 24/7 operation
Satsuma Display – the most compact air-cooled femtosecond laser
Bernard Azout
Key Features:
- 4 wavelengths IR, Green, UV and DUV for processing all kind of materials including metals, p-Si, ITO, isolators and polymers
- Femtosecond pulses for high quality thin layer removal and cutting with low HAZ
- Air-cooled, compact, lightweight and robust for smooth integration on a gantry system
SOL – COMPACT Q-SWITCHED DPSS LASER
Johanna Taieb
Key Features:
- Up to 40W @ 1064
- Up to 10W @ 532
- 300 kW peak power
- Compact Air cooled Single Unit
- Up to 200 kHz repetition rate
- Electronic Pulse Energy Modulation
- Sealed and rugged
- Monolothic Design
- 24 Vdc
Supercontinuum Mode Locked, SC-Pro M
Michael Iluz
Key Features:
- Wavelength: 410nm-2400nm
- Total power: 7W
- Repetition Rate: 80MHz
- Seed source pulse duration: ~6ps
- Single-Mode Output
