Showing all 14 results

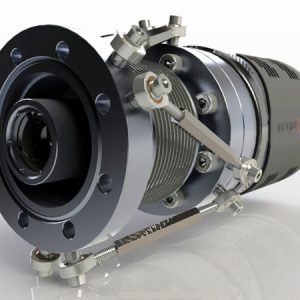

HASO EUV

 Johanna Taieb

Imagine Optic’s HASO EUV wavefront sensors offers professionals unsurpassed quality,
precision and ease of use for ultra-short wavelength beam characterization, adjustment
and alignment

Key features:

  • Working wavelength range from 4 to 45 nm, see the specification table below
  • High resolution
  • Large aperture
  • Vacuum compatible
  • Perfectly adapted for laboratory and industrial applications
  • Independent phase and intensity measurements
  • High-Numerical Aperture (NA) model now available
Read more

HASO Pack for Universities

 Miki Iluz

HASO wavefront sensor kit for education purpose including:

  • HASO4 VIS
  • WaveView software
  • MTF software
  • PSF software

This sensor can be used in schools or universities for educational purpose

Read more

HASO R-Flex2

 Johanna Taieb

Key features

  • For 400 – 1100 nm wavelength range
  • Compact and robust for easy integration
  • Up to 21 000 sampling points
  • Up to 1 kHz acquisition frequency
Read more

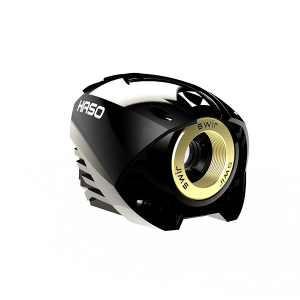

HASO SWIR

 Johanna Taieb

The HASO SWIR is our Shack Hartmann wavefront sensor based on InGaAs camera offering
high accuracy, large dynamic and speed over the SWIR 0.9-1.7um. It’ll be ideal wavefront
sensor for optical metrology and adaptive optics with following key features including :

  • ~ λ/100 rms on the 0.9 – 1.7 µm wavelength range
  • simultaneous and independent measurement of both phase & intensity
  • true absolute measurement
  • large dynamic range
  • acquisition frequency up to 99 Hz
Read more

HASO3 128 GE2

 Johanna Taieb

The HASO3 128 GE2 Shack Hartmann wavefront sensor offers unique measurement
performance capabilities with the following key features :

  • highest-resolution : 16,384 independent measurement points
  • largest aperture dimension of 14.6 x 14.6 mm²
  • simultaneous and independent measurement of both phase & intensity measurement
  • largest available dynamic range
  • temperature stabilized for long term measurements
Read more

HASO3 FAST

 Johanna Taieb

Imagine Optic’s HASO3 FAST wavefront sensor offers professionals unsurpassed quality,
precision and ease of use.

Key features:

  • Working wavelength range between 400 and 1100 nm
  • highest speed at 905 Hz
  • highest relative accuracy of λ/150 rms
  • true absolute measurement with λ/100 rms
  • simultaneous and independent measurement of both phase & intensity
  • unbeatable accuracy and dynamic range
Read more

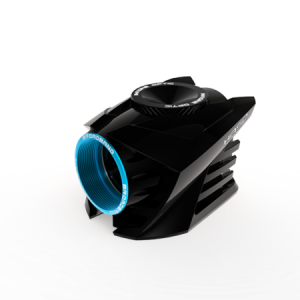

HASO4 Broadband

 Johanna Taieb

The HASO4 Shack Hartmann wavefront sensor takes advantage of today’s
best technology to provide unique features including:

  • Full spectral range calibration over 400nm -1100 nm
  • λ/100 rms absolute accuracy over 600λ dynamic range
  • patented measurement of phase and intensity, simultaneously and independently
  • patented microlens array technology manufactured in-house
  • 20 Hz, full pupil
  • WaveView or HASO v3.2, the industry’s most complete software package, included
  • WaveKit (SDK of WaveView) compatible with C, LabVIEW and MATLAB
Read more

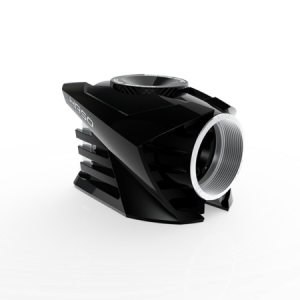

HASO4 FAST

 Johanna Taieb

The HASO4 Fast is the new generation of Imagine Optic’s Shack Hartmann wavefront sensor dedicated to application where high-speed wavefront measurement or correction is required. It has been designed to reach very high performances at an attractive price.

Key features include:

  • Working wavelength range between 400 and 900 nm
  • Acquisition frequency up to 1 kHz
  • High repeatability of λ/200 rms
  • Calibration at factory with the absolute measurement accuracy up to with λ/100 rms
  • simultaneous and independent measurement of both phase & intensity
Read more

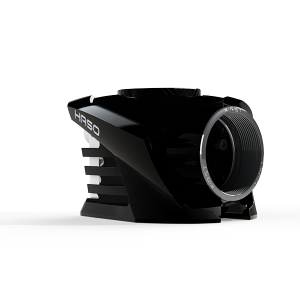

HASO4 FIRST

 Johanna Taieb

HASO4 First Shack Hartmann wavefront sensors are easy to deploy and install for any applications.

The HASO4 First takes advantage of today’s best technology to provide unique features including:

  • λ/100 rms absolute accuracy over 400λ dynamic range
  • patented measurement of phase and intensity, simultaneously and independently
  • patented microlens array technology manufactured in-house
  • frame rate of 99 Hz for high-resolution or 165 Hz for high-speed acquisition
  • WaveView, the industry’s most complete software package, included
  • WaveKit or SDK of WaveView compatible with C, LabVIEW and MATLAB
  • C-mount compatible entrance aperture – external trigger capability
Read more

HASO4 NIR

 Johanna Taieb

Imagine Optic’s HASO4 NIR Shack Hartmann wavefront sensor offers, precision and
ease of use in the NIR bandwidth with the following key features include:

  • ~ λ/35 on the1500 – 1600 nm wavelength range
  • simultaneous and independent measurement of both phase & intensity
  • true absolute measurement
  • dynamic range without compromise on the accuracy
Read more

HASO4 VIS

 Johanna Taieb

HASO4 VIS Shack-Hartmann wavefront sensors are easy to deploy and ready for any application in visible spectrum.

The HASO4 VIS takes advantage of today’s best technology to provide unique features including:

  • 10 nm rms accuracy over the full visible spectrum (monochromatic or polychromatic)
  • optimized for large wavelength range (400-700 nm)
  • patented measurement of phase and intensity, simultaneously and independently
  • patented microlens array technology manufactured in-house
  • frame rate of 99 Hz, full-resolution
  • WaveView, the industry’s most complete software package, included
  • WaveKit SDK compatible with C, LabVIEW and MATLAB
  • C-mount compatible entrance aperture – external trigger capability
Read more
