HASO4 SWIR 1550 – Wavefront sensor for telecommunications and SWIR Lasers Johanna Taieb BEST FOR – Telecommunications – IR Lasers – SWIR lasers – Optical systems in the SWIR – LIDAR application
HI-Q® OPTICAL TEST & MEASUREMENT SYSTEMS INFO KEY FEATURES: Interferometric Optical Sensing LIDAR B-OTDR Temperature and Strain Gas Sensing Optical Metrology and Spectroscopy Acoustic Sensing Oil and Gas Exploration Coherent Communication Test and measurement
High Power Laser Diode Driver OEM CW/QCW 100А 10V Info FEATURES: ULTRA-COMPACT: 57.9 mm x 36.8 mm x 15 mm Very High efficiency up to 97% NTC thermistor input (for shutdown driver when the laser diode was overheating) Analog Control Signal/ RS-232 / UART (possibility of USB option) Soft-Start Current Ramp to User Set-Point Possibility to calibrate current within 5% Multiple Layers of Laser Diode Protection RoHS3 compliant LabView driver Free software
High Power Laser Diode Driver OEM CW/QCW 10А/15A/25A 40V Info FEATURES: ULTRA-COMPACT: 57.9 mm x 36.8 mm x 15 mm / 60mm x 58mm x 30mm Very High efficiency up to 97% NTC thermistor input (for shutdown driver when the laser diode was overheating) Analog Control Signal/ RS-232 / UART (possibility of USB option) Soft-Start Current Ramp to User Set-Point Possibility to calibrate current within 5% Multiple Layers of Laser Diode Protection RoHS3 compliant LabView driver Free software
High-power motorized beam expanders MEX-HP Michael ILUZ Main features: High power optical design (up to 200 W @ 1030 nm, 500 fs, 1 Mhz) No internal reflections on optical elements High beam pointing stability <0,2 mrad All-in-one design with integrated controller Two lens simultaneous movement assuring no misfocus Absolute encoder (both lenses) Fused silica optical elements Diffraction limited performance for all magnifications Application examples: Precise laser micromachining High power laser beam management Research

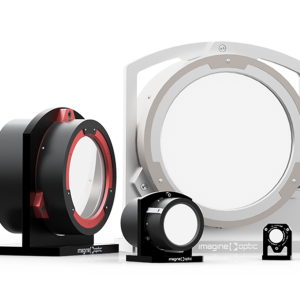

ILAO STAR – ELI-NP’s choice to reach 10PW Johanna Taieb KEY FEATURES – Mirror shape maintained even without electrical power – Excellent optical quality with active flat better than 10 nm rms and minimal print-through effect – Perfectly adapted to a beam diameters ranging from 20 to 500 mm – Dielectric, metallic, or hybrid coating available – Compatible with WaveTune software and every HASO wavefront sensors – Optional SDK in C, Python, Labview BEST FOR – Correcting aberrations in full-power mode – Focal spot correction – Wavefront precompensation – Particle acceleration – High harmonic generation KEY SPECS – Optical quality enabling Strehl Ratio > 0,9 – Closed-loop processing frequency ≥ 10Hz – Very low hysteresis (less than 0.5%) – Very high correction capability – No backlash compensation needed – Completely customized to laser’s parameters – Easy maintenance for actuator or substrate replacement – Any angle of incidence ≤ 45°

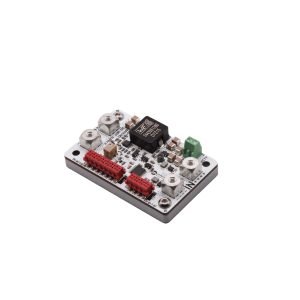

Laser Diode Current Driver OEM CW/QCW 15A/30A 10V Info FEATURES: ULTRA-COMPACT: 57.9 mm x 36.8 mm x 15 mm Very High efficiency up to 97% NTC thermistor input (for shutdown driver when the laser diode was overheating) Analog Control Signal/ RS-232 / UART (possibility of USB option) Soft-Start Current Ramp to User Set-Point Possibility to calibrate current within 5% Multiple Layers of Laser Diode Protection RoHS3 compliant LabView driver Free software
Laser diode driver: Tapered amplifier controller LDD605 Miki Iluz Key Features: Low noise diode current source, up to 8A and 5V Temperature controller with TEC driver up to 60W Fully adjustable digital PID temperature servo Modulation 100mA modulation depth, 40kHz bandwidth Ergonomic controls, LCD display Computer control via ethernet and USB interfaces Photodetector input for laser power monitoring Safety features: Key start External interlock Current and temperature limits Photodetector limits Full set of cables Compact 25 x 8 x 29 cm, 2.4 kg
Laser power attenuators Michael ILUZ Laser Power Attenuators: Manual laser power attenuators LPA-M Motorized laser power attenuators LPA Advanced laser power attenuators LPA-A OEM Motorized laser power attenuators LPA-OEM Unpolarized beam motorized laser power attenuators LPA-U Application examples: Laser machining Research Laser power control / attenuation / stabilization
MicAO 3DSR – High Resolution 3D for SMLM Johanna Taieb BEST FOR – Photoactivation localization microscopy (PALM) – Stochastic optical reconstruction microscopy (STORM) – Single particle tracking (SPT) KEY FEATURES – Corrects aberrations and restores diffraction-limited PSF – Delivers best 2D and 3D localization precision for PALM/STORM imaging – Doubles the number of detected photons and improves localization precision – High temporal stability of the correction
Mirao 52e – Optimized for closed-loop operations Copy Johanna Taieb BEST FOR – Bio-imaging – Ophthalmology – Microscopy – Beam shaping KEY SPECS – ±50 µm stroke (tilt p/v) – 15 mm pupil with 52 actuators – Exceptional surface quality (less than 10 nm rms active flat) – Virtually no hysteresis (less than 2%) – Near perfect linearity (over 95%) – Compatible with open-loop control – USB2 connectivity
Mirao 52es – For long-term wavefront stability Johanna Taieb KEY SPECS – ±50 µm stroke (tilt p/v) – 15 mm pupil with 52 actuators – Exceptional surface quality (<10 nm rms active flat) – Virtually no hysteresis (<2%) – Near perfect linearity (>95%) – Compatible with open-loop control – USB2 connectivity – Ultra-high temporal stability
Mirao: Electromagnetic deformable mirror Miki Iluz Advantages of Mirao: Closed-loop precision reaching 7nm RMS Virtually no hysteresis (less than 2%) Nearly perfect linearity (more than 95%) Dust proof & high stabilization options available
Motorized polarization rotators MRO Michael ILUZ Main features: Compact design High resolution – 175543 μsteps in 360 deg rotation High accuracy – ±10 μsteps (± 0,02 deg) Clear aperture – 18 mm Fast adjustment – less than 0,2 sec (0 to 45 deg)
mu-DM: Deformable mirror for microscopy & ophthalmology Miki Iluz Features of µDM deformable mirror for microscopy Fast closed-loop convergence and accurate sensorless correction with perfect linearity and absence of hysteresis Preserved photon budget with achromatic, highly reflective and continuous membrane Long-term stability with temporal drift automatic compensation Large dynamic range with 50% of actuators stroke still available while generating 40 microns PtV of focus Fine timing control with trigger-in and trigger-out features Easy integration with electronics embedded in a single-piece design and connection via a USB3 cable Correction up to 10th Zernike order thanks to optimized actuator layout
PROTEUS-C : A made-to-measure spatial multiplexer for all your research needs Johanna Taieb Key Features: Up to 45 modes Large bandwidth of operation Minimal insertion loss and high selectivity Optimized for standard and custom FMF, MMF and free space output
