Visible
Showing 1–16 of 24 results

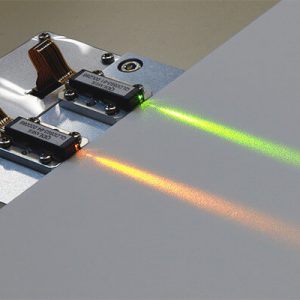

532-594 nm compact visible lasers
Johanna Taieb
Key Features:
- Wavelengths: 532, 561, and 594 nm
- Light output: 5, 20, 30, and 50 mW
- Low power consumption
- Short pulse operation (nanoseconds, 50 picoseconds)
- Compact package
- Option: Fiber pigtail
- Applications: Light source for biomedical equipment, sensors

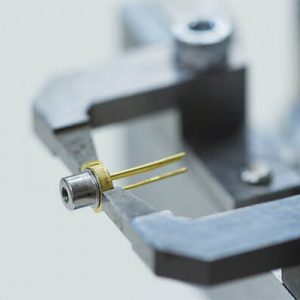

640 – 940 nm high power FP lasers
Johanna Taieb
Key Features:
- 640 nm, 30 mW @50℃, 80 mW @30℃
- 660 nm, 50/100/120 mW@60℃, 50 mW @70℃
- 785 nm, 100 mW @70℃
- 830 nm, 210 mW @70℃
- 905 nm, 40/100 mW @70℃/li>
- 940 nm, 285 mW @70℃
- TO-56 package
- Built-in monitor PD
- Applications: Industrial applications, machine vision, leveling instruments, particle counters,
various kinds of sensors
640 Series – Single Frequency CW DPSS Laser
Michael Iluz
Key Features:
- Narrow Linewidth: ≤ 0.5 MHz
- High Power Stability: ≤ 2.0 %
- High Spectral Stability: ± 1.0 pm
- Excellent Beam Quality

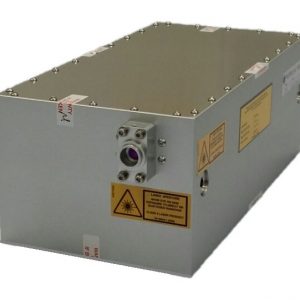

Aero – High Energy DPSS Lasers
Johanna Taieb
Key Features:
- Up to 200mJ @ 1064nm
- Up to 100 mJ @ 532 nm
- 10ns to 30 ns
- Single shot up to 200 Hz
- Multiple wavelengths configurations
Duetto 532 Series Laser – Single Frequency CW DPSS
Michael Iluz
Key Features:
- Narrow Linewidth: ≤ 0.5 MHz
- High Power Stability: ≤ 2.0 %
- High Spectral Stability: ± 1.0 pm
- Excellent Beam Quality
Laser system ML7710
Bernard Azout
Key Features:
- CE and ETL mark
- Comes with regulatory documentation
- CB tested to US/CA, EU, CH, Japan, SG, China
- Fast product launches
- Service and life-cycle support
- Lowest TCO
Microchip: Picosecond – Nanosecond Pulsed Laser
Johanna Taieb
Key Features:
- Down to 300 ps
- 236.5 nm to 1064 nm
- Single shot to 100 kHz
- Up to 80 uJ
- Up to 50 kW
- M < 1.3
- SLM
ML6600 – high-power laser system with multi-wavelength support
Bernard Azout
Key features:
ML6600 laser system has 1-3 receptacle laser outputs. The control, cooling and driver are integrated, and the control supports both analog and digital modes.
• Wavelengths: 400–2000 nm
• Power range: up to 120 W, depending on the wavelength

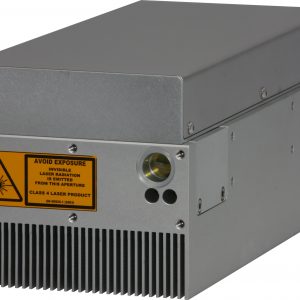

ONDA NS Q-SWITCHED DPSS LASER
Johanna Taieb
Key Features:
- Up to 0.8mJ pulse energy
- @355nm @532nm @1064nm
- 2 to 10ns pulsewidth
- Single shot to 100kHz
- MOPA configurations
- Monolithic design
- Air cooling
- Low heat waste

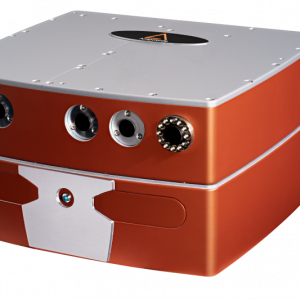

Satsuma Display – the most compact air-cooled femtosecond laser
Bernard Azout
Key Features:
- 4 wavelengths IR, Green, UV and DUV for processing all kind of materials including metals, p-Si, ITO, isolators and polymers
- Femtosecond pulses for high quality thin layer removal and cutting with low HAZ
- Air-cooled, compact, lightweight and robust for smooth integration on a gantry system
Satsuma Niji – Fully customizable and versatile femtosecond laser
Bernard Azout
Key Features:
- Up to four simultaneous wavelengths
- Femtosecond pulses for maximum precision and minimal HAZ
- Fully customizable

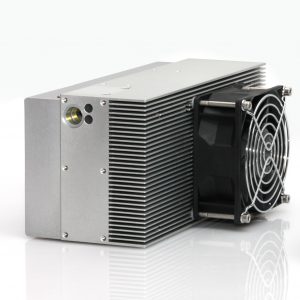

SOL – COMPACT Q-SWITCHED DPSS LASER
Johanna Taieb
Key Features:
- Up to 40W @ 1064
- Up to 10W @ 532
- 300 kW peak power
- Compact Air cooled Single Unit
- Up to 200 kHz repetition rate
- Electronic Pulse Energy Modulation
- Sealed and rugged
- Monolothic Design
- 24 Vdc
Solid-State Lasers: JenLas® D2. series
Bernard Azout
Key features:
- High precision: Based on proven disk laser technology.
- Optimal beam quality: Due to a thin Nd:YVO4 disk as the laser medium.
- Peltier cooling: No water in the system.
- Easy to integrate: Compact OEM design.
Supercontinuum Mode Locked, SC-Pro M
Michael Iluz
Key Features:
- Wavelength: 410nm-2400nm
- Total power: 7W
- Repetition Rate: 80MHz
- Seed source pulse duration: ~6ps
- Single-Mode Output
