Showing 1–16 of 45 results

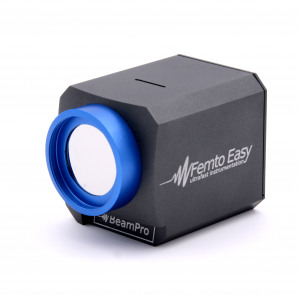

BeamPro

 Michael Iluz

Key Features:

  • Compact design
  • User-friendly and powerful software
  • High resolution (up to 24 Mpx)
  • Small pixel size (down to 1.67 µm)
  • Large sensor size (up to 25 mm)
  • C-mount



CAM SQUARED

 Michael Iluz

M² Measurement & Laser Quality Testing

CAM SQUARED is Imagine Optic’s innovative answer to the need for laser quality testing and M² measurement in the lab or in production.

As easy and quick to set up as a beam profiler, CAM SQUARED gives access to the M squared factor in seconds instead of minutes!

Compact Fizeau wavemeter FZW600

 Miki Iluz

Key Features

  • Absolute accuracy 600MHz
  • Measurement precision 50MHz
  • Up to 250 measurements/s
  • Operation over 400-1100nm without recalibration
  • Rapid on-device measurement, no host computer required!
  • Integrated PID controller for wavelength stabilisation
  • Interactive display for control and diagnostics
  • Ethernet and USB interfaces
  • Compact form-factor, 146 x 120 x 81 mm

EduPIV

 INFO

KEY FEATURES:

  • Complete, pre-configured safe PIV systems
  • Delivered with flow loop
  • USB based high resolution 2MP cameras offering 165fps
  • No Synchronizer needed
  • Great educational software

he EduPIV system includes

  • A flow loop producing steady, periodic or pulsed jet flow
  • Seeding particles
  • FlowSense USB camera, 2 MP resolution, 165 frames per second at full resolution
  • Eye-safe LED illumination and light sheet optics
  • DynamicStudio EduPIV software

The EduStereoPIV upgrade includes

  • A second camera, needed for stereo PIV.
  • Scheimpflug mounts that maintain the field of view by keeping the lens in position whilst tilting the camera
  • Bright 35mm f2.0 full format lenses
  • Simple double layer, double sided target for automated calibrations
  • The Stereo PIV software add-on

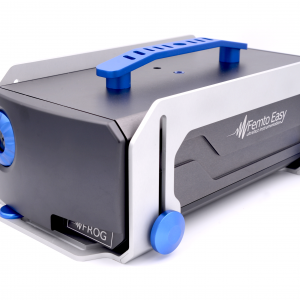

FAST FROG

 Michael Iluz

Key Features:

  • Easy to use: no calibration and no tweaking necessary
  • User-friendly and powerful software
  • Can access Spatio-Temporal couplings (Spatial Chirp, Pulse Front Tilt)
  • Versatile: instant-swap of spectrometer for different wavelength ranges
  • Single-pulse extraction possible up to 150 kHz laser repetition rate (with Enhanced
    detection option)
  • Achromatic and non-dispersive (FC and FS models)
  • Sub-5 fs can be measured

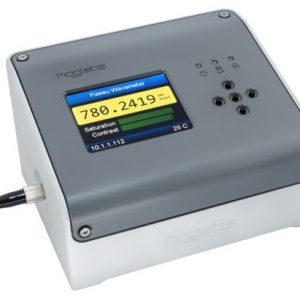

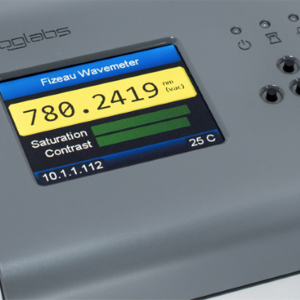

Fizeau Wavemeter (FZW)

 Michael Iluz

Key Features:

  • Operates over 400 – 1100nm without recalibration
  • 3-sigma uncertainty of 600MHz; typical measurement accuracy < 200MHz
  • Built-in PID for laser frequency stabilisation
  • Runs from USB or DC jack, no computer required!
  • Simple computer interface over Ethernet/USB

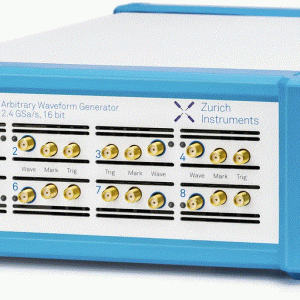

HDAWG – 750 MHz Arbitrary Waveform Generator

 Michael Iluz

Key Features:

  • 2.4 GSa/s, 16 bits, 750 MHz signal bandwidth
  • 5 Vpp maximum amplitude
  • Scalable up to 144 output channels
  • Highest channel density available
  • Less than 50 ns trigger-to-output delay
  • Digital modulation at multiple frequencies
  • LabOne® AWG Sequencer and Compiler

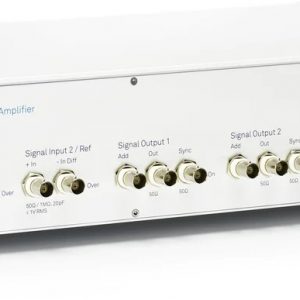

HF2LI – 50 MHz Lock-in Amplifier

 Michael Iluz

Key Features:

  • DC – 50 MHz, 210 MSa/s
  • 2 independent lock-in units, 2 signal generators
  • 1 fundamental and 2 harmonics per lock-in unit
  • 4 auxiliary outputs, 2 auxiliary inputs
  • USB 2.0, 480 Mbit/s
  • LabOne® toolset including Scope, Sweeper, and Spectrum Analyzer

HF2PLL – Phase-Locked Loop

 Michael Iluz

Key Features:

  • Dual 50 MHz PLL
  • 2 fully configurable lock-in amplifiers
  • 2 high-frequency, high-performance signal generators
  • 50 kHz PLL bandwidth with full parameter control
  • 4 fully configurable PID controllers
  • PLL harmonic mode
  • Frequency deviation and dissipation output (jitter-free)

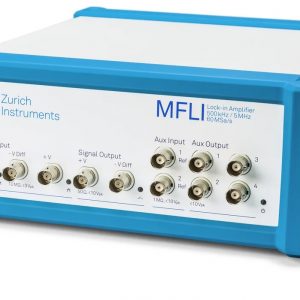

MFLI – 500 kHz / 5 MHz Lock-in Amplifier

 Michael Iluz

Key Features:

  • DC – 500 kHz, 60 MSa/s, 16 bits
  • Optional upgrade to 5 MHz
  • Current and differential voltage inputs
  • AC line and DC supply (battery) operation
  • USB 2.0 and 1 GbE high-speed connections
  • Plug & Play with embedded LabOne® Web Server
  • LabOne toolset including Scope, Sweeper, and Spectrum Analyzer

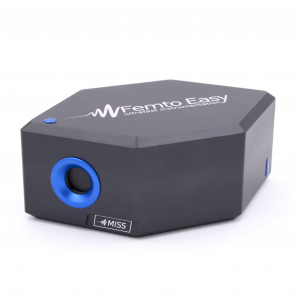

MISS SPECTROMETER

 Michael Iluz

Key Features:

  • Compact design
  • Horizontal and vertical spatial chirp measurement
  • User-friendly and powerful software (STAR : Software Technology for Acquisition and retrieval)
  • High spatial and spectral resolution
  • Different models from 240 to 1100 nm
  • Input beam diameter up to 12.7 mm
  • Single shot capable up to 75 kHz, synchronization options available
  • Fiber input compatible
