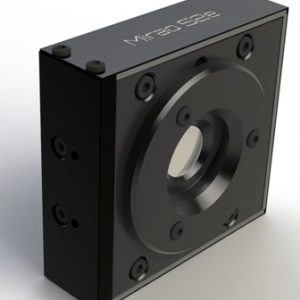

Mirao 52e – Optimized for closed-loop operations Copy

 Johanna Taieb

BEST FOR
– Bio-imaging
– Ophthalmology
– Microscopy
– Beam shaping

KEY SPECS
– ±50 µm stroke (tilt p/v)
– 15 mm pupil with 52 actuators
– Exceptional surface quality (less than 10 nm rms active flat)
– Virtually no hysteresis (less than 2%)
– Near perfect linearity (over 95%)
– Compatible with open-loop control
– USB2 connectivity

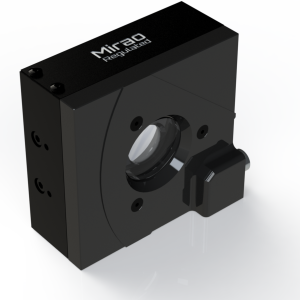

Mirao 52es – For long-term wavefront stability

 Johanna Taieb

KEY SPECS
– ±50 µm stroke (tilt p/v)
– 15 mm pupil with 52 actuators
– Exceptional surface quality (<10 nm rms active flat)
– Virtually no hysteresis (<2%) – Near perfect linearity (>95%)
– Compatible with open-loop control
– USB2 connectivity
– Ultra-high temporal stability

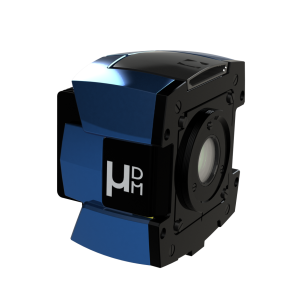

mu-DM: Deformable mirror for microscopy & ophthalmology

 Miki Iluz

Features of µDM deformable mirror for microscopy

  • Fast closed-loop convergence and accurate sensorless correction with perfect linearity and absence of hysteresis
  • Preserved photon budget with achromatic, highly reflective and continuous membrane
  • Long-term stability with temporal drift automatic compensation
  • Large dynamic range with 50% of actuators stroke still available while generating 40 microns PtV of focus
  • Fine timing control with trigger-in and trigger-out features
  • Easy integration with electronics embedded in a single-piece design and connection via a USB3 cable
  • Correction up to 10th Zernike order thanks to optimized actuator layout
