>1W - 10W

Showing all 11 results

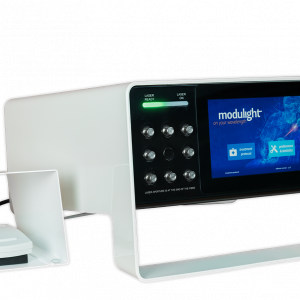

Laser system ML7710

 Bernard Azout

Key Features:

  • CE and ETL mark
  • Comes with regulatory documentation
  • CB tested to US/CA, EU, CH, Japan, SG, China
  • Fast product launches
  • Service and life-cycle support
  • Lowest TCO

PowerMir – 4.6µm QCW QCL

 Bernard Azout

Key Features:

  • Maximum Average Optical Power: above 1 Watts at 4 microns and 4.6 microns, 1.5 W at 4.8µm and 300mW at 9µm
  • Mode of operation: Quasi-CW, high duty cycled pulsed
  • Central wavelength: 4 µm or 4.6µm, or 4.8µm or 9.Xµm +/- 0.1 µm
  • Pulse frequency: > 500 kHz
  • Divergence: Horizontal < 8 mrad (typically 6mrad), Vertical < 6 mrad (typically 4mrad)
  • Beam quality: TM00 Gaussian beam, M²<1.5
  • Output beam dimension (window output): 2 mm x 3 mm
  • Polarization: Linear vertically polarized

PowerMir – 4.8µm QCW QCL

 Bernard Azout

Key Features:

  • Maximum Average Optical Power: >1.5W or < 500mW
  • Mode of operation: Quasi-CW, high duty cycled pulsed
  • Central wavelength: 4.8 μm +/- 0.1 μm
  • Pulse frequency: > 500 kHz
  • Divergence: Horizontal:3 to 6 mrad, Vertical 2 to 4 mrad
  • Beam quality: TM00 Gaussian beam, M²<1.5
  • Output beam dimension for the standard beam option (window output): Typically 3 mm (vertical) x 2 mm (horizontal)
  • Polarization: Linear vertically polarized (>98%)
  • Reliability: > 3500 h

POWERMIR – 4μm QCW QCL

 Bernard Azout

Key Features:

  • ITAR free technology
  • QCW operating mode for increased wall-plug efficiency and reduced thermal dissipation
  • Reproducible specs manufacturing for series productions
  • Circular beam (option) to reduce efforts made by clients to shape the beam

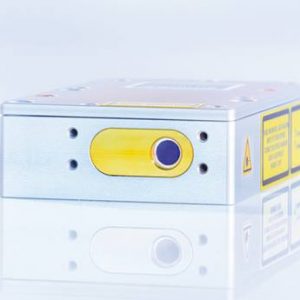

Solid-State Lasers: JenLas® D2. series

 Bernard Azout

Key features:

  • High precision: Based on proven disk laser technology.
  • Optimal beam quality: Due to a thin Nd:YVO4 disk as the laser medium.
  • Peltier cooling: No water in the system.
  • Easy to integrate: Compact OEM design.

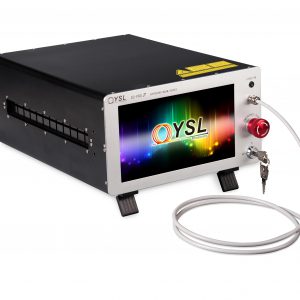

Supercontinuum source SC-PRO

 Michael Iluz

Key Features:

  • Total power: >8W (10-20W Optional)
  • Internal Repetition Rate: 0.1-200MHz
  • External Triggerable: 1-80MHz
  • Wavelength: 400nm-2400nm
  • Pulse Energy: >1uJ
  • Single-Mode Output
  • NIM trigger signal output, externally triggerable
