HV Bases

 Johanna Taieb

Key Features:

  • compact
  • no high voltage cables
  • low noise
  • linearity limited only by photomultiplier performance

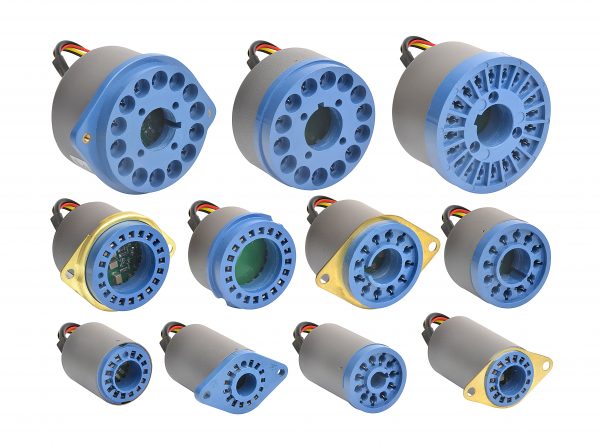

The new compact range of high voltage power bases are available for use with 25mm, 30mm, 51mm, 78mm and 130mm diameter hard pin and capped photomultipliers. The units operate from a low voltage supply (+5 V to +15 V) and the maximum output high voltage is 2000V. The operating voltage can be set using one of the three programming options. The units are housed within a screened cylindrical metal enclosure with threaded mounting bushes. The HV bases are available with or without mounting flange.

The HV bases can be used for both pulsed light and photon counting applications.

ET Enterprises offers a wide range of HV Bases, several data sheets are in the Attached Documents section.
