Showing all 7 results

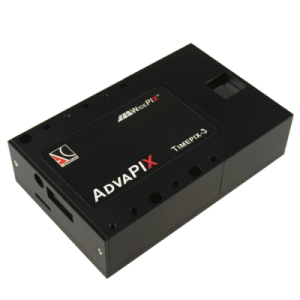

Fast Spectral Imaging X-Ray Camera: AdvaPIX TPX3

 Michael Iluz

Key Features:

• Readout chip type: Timepix3
• Spatial resolution: 256 x256 pixels, 55 µm pitch
• Time resolution: 1.6 ns
• Interface: USB 3.0 (Super-Speed)
• Power: External or via second USB 3.0
• Max. readout speed: 40 million pixels / s
• Dimensions: 125 x 79 x 25.5 mm
• Weight: 503g

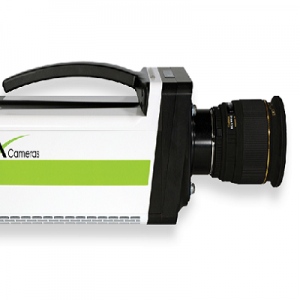

i-SPEED 5 SERIES CAMERA

 Michael Iluz

Key Features:

  • 2.1 MegaPixel CMOS Sensor
  • 1 Million fps Max Speed
  • 13 GPixels/s
  • 1920 x 1080 @ 6,300 fps
  • ISO 16,000 / 125,000
  • Shutter time: standard 1µs, Fast mode to 277ns

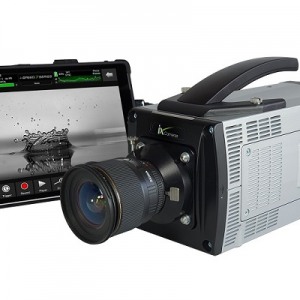

i-SPEED 7 SERIES CAMERA

 Michael Iluz

Key Features:

  • 3.2 MegaPixel CMOS Sensor
  • 2.45 Million fps Max Speed
  • 27+ GPixels/s
  • 2072 x 1536 @ 8,512 fps
  • 1920 x 1080 @ 12,742 fps
  • ISO 16,000 / 125,000
  • Shutter time: standard 1µs, Fast mode to 168ns

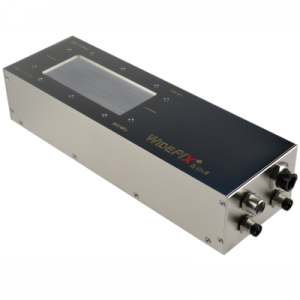

Industrial Spectral Scanner Camera – WidePIX L 2(1)X15 – MPX3

 Michael Iluz

Key Features:

  • Sensor Material: Si or CdTe
  • Sensor Thickness: 300 μm for Si; 1 mm for CdTe
  • Sensitive Area: 28 (14) x 140.8 mm
  • Number of Pixels: 512 (256) x 2560
  • Pixel Pitch: 55 μm
  • Resolution: 9 lp/mm
  • Readout Speed:170 (1×10 tiles) and 80 (2×10 tiles) frames/s
  • Readout Chip: Medipix3
  • Pixel Mode of Operation: Counting in Single Pixel Mode (SPM) or Charge Summing Mode (CSM)
  • Counter depth: 12 or 24 bits (configurable)
  • Connectivity: 2x Ethernet RJ-45
  • Weight: 3400 g
  • Dimensions: 210 mm x 190 mm x 42 mm (L x W x H)
  • Software: Pixet Pro
